| ชื่อแบรนด์: | GQZ |
| หมายเลขรุ่น: | XSA140414N |
| ปริมาณการสั่งซื้อขั้นต่ำ: | 5 ชิ้น |
| ราคา: | $580 ~ $880 |
| เวลาการส่งมอบ: | 3 วันทำการหลังจากได้รับการชำระเงินของคุณ |
| เงื่อนไขการชำระเงิน: | T/T หรือ Western Union หรือ Paypal |

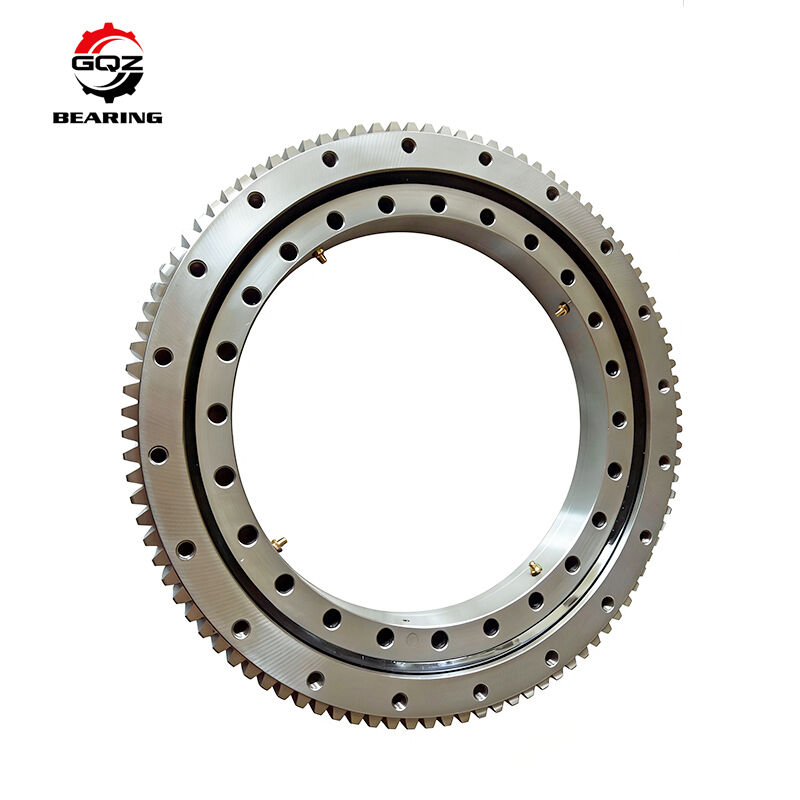

The XSA140414N External Gear Slewing Bearing is a high quality, high precision cross roller bearing designed for rotary platforms, CNC machinery, industrial automation, and mechanical systems. With dimensions of 503.3x417x56mm, this slewing bearing with external gear ensures efficient torque transmission, smooth rotation, and reliable load performance.
Built with a cross cylindrical roller structure, it supports radial, axial, and moment loads simultaneously, making it ideal for turntable bearings, precision positioning systems, and heavy-duty rotary applications.
This external gear cross roller slewing bearing offers high rigidity, stable operation, and long service life, widely used in CNC equipment, automation systems, construction machinery, and industrial applications.
| Parameter | Specification |
|---|---|
| Model | XSA140414N |
| Inner Diameter (ID) | 417 mm |
| Outer Diameter (OD) | 503.3mm |
| Width (H) | 56 mm |
| Type | Slewing Bearing (External Gear) |
| Structure | Crossed Cylindrical Rollers |
| Material | Bearing Steel |
| Accuracy Class | P5 / P4 optional |
| Preload | Custom |
| Application | Rotary Platforms, CNC Machinery, Automation Systems |
| INA | Weight (Kg) | Da | di | Di | da | La | Li | ni | na | A | B | C | D | Preload | do | m | z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XSA140414N | 32 | 503.3 | 344 | 417 | 413 | 455 | 368 | 24 | 20 | 0.04 | 0.04 | 0.06 | 0.06 | 0.01-0.03 | 495 | 5 | 99 |
| XSA140544N | 44 | 640.3 | 474 | 547 | 543 | 585 | 498 | 32 | 28 | 0.04 | 0.04 | 0.07 | 0.06 | 0.01-0.03 | 630 | 6 | 105 |
| XSA140644N | 52 | 742.3 | 574 | 647 | 643 | 685 | 598 | 36 | 32 | 0.05 | 0.05 | 0.08 | 0.07 | 0.01-0.04 | 732 | 6 | 122 |
| XSA140744N | 59 | 838.1 | 674 | 747 | 743 | 785 | 698 | 40 | 36 | 0.05 | 0.05 | 0.08 | 0.08 | 0.01-0.04 | 828 | 6 | 138 |
| XSA140844N | 71 | 950.1 | 774 | 847 | 843 | 885 | 798 | 40 | 36 | 0.06 | 0.06 | 0.09 | 0.08 | 0.01-0.04 | 936 | 8 | 117 |
| XSA140944N | 77 | 1046.1 | 874 | 947 | 943 | 985 | 898 | 44 | 40 | 0.06 | 0.06 | 0.09 | 0.09 | 0.01-0.05 | 1032 | 8 | 129 |
| XSA141094N | 91 | 1198.1 | 1024 | 1097 | 1093 | 1135 | 1048 | 48 | 44 | 0.07 | 0.07 | 0.11 | 0.11 | 0.01-0.05 | 1184 | 8 | 148 |
Upgrade your system with XSA140414N External Gear Slewing Bearing.
Contact GQZ Bearing today for pricing, samples, or technical consultation!
