| ชื่อแบรนด์: | GQZ |
| หมายเลขรุ่น: | XU050077 |
| ปริมาณการสั่งซื้อขั้นต่ำ: | 5 ชิ้น |
| ราคา: | $48 – $60 |
| เวลาการส่งมอบ: | 5-8 วันทำการหลังจากได้รับการชำระเงินของคุณ |
| เงื่อนไขการชำระเงิน: | D/A,D/P,T/T |

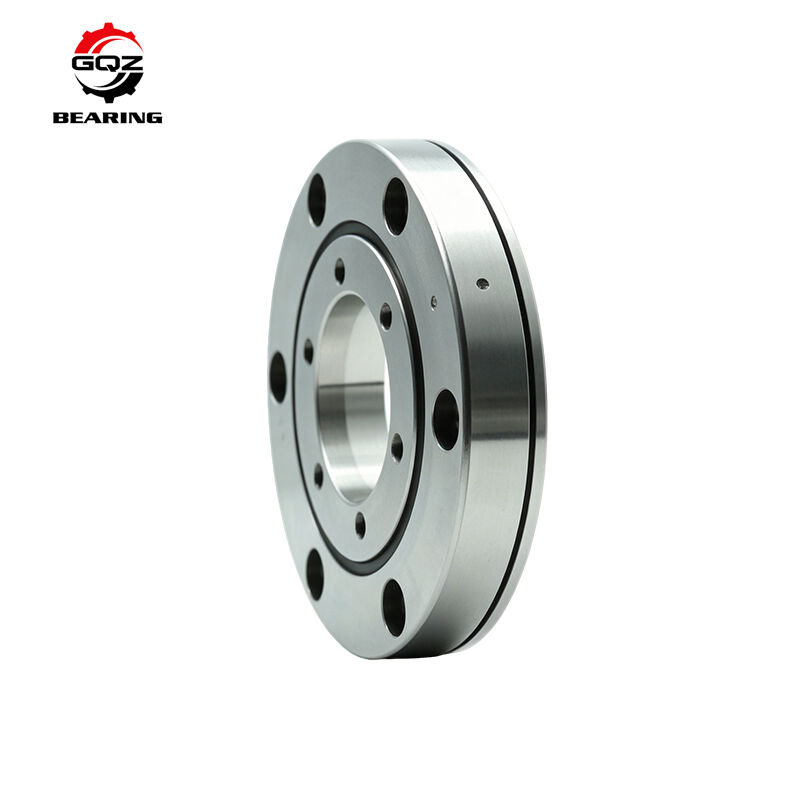

The XU050077 crossed roller slewing bearing is designed for high-load, low-speed applications where stable rotation, precise positioning, and durability are essential.
This bearing features a crossed roller design to handle high axial, radial, and moment loads simultaneously. Additionally, it includes mounting holes for easy installation, making it ideal for a variety of heavy-duty, low-speed applications.
Factory direct pricing and wholesale supply are available. Contact us for a quote within 24 hours.
This bearing is suitable for applications requiring high load capacity and low-speed rotation, such as:
Ideal for heavy-duty applications with precise motion control at low speeds.
Enhances system stability and precision while handling heavy loads at low speeds.
| Parameter | Value |
|---|---|
| Model | XU050077 |
| Inner Diameter (ID) | 50 mm |
| Outer Diameter (OD) | 77 mm |
| Width | 16 mm |
| Structure | Crossed Roller Slewing Bearing |
| Gear Type | Without Gear |
| Material | High-quality Bearing Steel |
| Load Type | Axial, Radial, Moment Load |
| Application | Heavy machinery, turntables, construction equipment |
| Mounting Holes | Yes |
| Customization | Available |
This bearing can replace models from:
Suitable for maintenance, replacement, and OEM solutions.
| INA | Weight (Kg) | Da | di | La | dB | na | Li | H | h | da | Di | ds | ts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XU050077 | 1.4 | 112 | 40 | 97 | 6.6 | 6 | 56 | 22 | 21 | 74 | 77.5 | 11 | 5.5 |
| XU060094 | 2.4 | 140 | 57 | 120 | 9 | 6 | 70 | 26 | 25 | 93.4 | 94.6 | 15 | 6 |
| XU060111 | 1.2 | 145.79 | 76.2 | 133.1 | 6.9 | 8 | 88.9 | 15.87 | 15.87 | - | 111.8 | 11 | 6.35 |
| XU080120 | 4 | 170 | 69 | 177.8 | 9 | 6 | 90 | 30 | 29 | 119.4 | 120.6 | 15 | 9 |
| XU080149 | 3.6 | 196.85 | 101.6 | 147.8 | 6.9 | 16 | 115.8 | 22.22 | 22.22 | - | 149.6 | 11 | 6.35 |
| XU120179 | 7 | 234 | 124.5 | 214 | 11 | 12 | 144.5 | 35 | 30 | 178 | 180 | - | - |
| XU120222 | 12 | 300 | 140 | 270 | 16 | 12 | 170 | 36 | 30 | 220 | 222 | - | - |
| XU160220 | 16 | 302 | 138 | 270 | 18 | 10 | 170 | 46 | 41 | 219 | 221 | - | - |
| XU160260 | 15 | 329 | 191 | 305 | 14 | 20 | 215 | 46 | 41 | 259 | 261 | - | - |
| XU080264 | 6.9 | 311 | 215.9 | 295.3 | 8.7 | 12 | 231.8 | 25.4 | 25.4 | 263.4 | 264.6 | 13.7 | 8.6 |
| XU180380 | 45 | 485 | 275 | 453 | 18 | 16 | 307 | 55 | 50 | 379 | 381 | - | - |
| XU160405 | 25 | 474 | 336 | 450 | 14 | 30 | 360 | 46 | 41 | 404 | 406 | - | - |
| XU080430 | 12 | 480 | 380 | 462 | 9 | 20 | 398 | 26 | 26 | 429.4 | 430.6 | 15 | 9 |
| XU180412 | 40 | 501 | 324 | 469 | 18 | 18 | 356 | 55 | 50 | 411 | 413 | - | - |
| XU180433 | 42 | 522 | 344 | 4190 | 18 | 20 | 376 | 55 | 50 | 432 | 434 | - | - |
| XU220460 | 64 | 568 | 356 | 524 | 22 | 18 | 396 | 64 | 59 | 459 | 461 | - | - |
| XU180475 | 46 | 562 | 388 | 530 | 18 | 20 | 420 | 55 | 50 | 474 | 476 | - | - |
| XU300515 | 115 | 646 | 384 | 598 | 26 | 18 | 432 | 86 | 79 | 514 | 516 | - | - |
| XU240545 | 94 | 655 | 435 | 615 | 22 | 24 | 475 | 79 | 72 | 544 | 546 | - | - |
| XU220574 | 82 | 680 | 468 | 640 | 22 | 20 | 508 | 68 | 61 | 573 | 575 | - | - |
| XU300586 | 115 | 704 | 468 | 664 | 22 | 18 | 508 | 86 | 79 | 585 | 587 | - | - |
| XU280680 | 120 | 798 | 565 | 755 | 22 | 30 | 605 | 79 | 72 | 679 | 681 | - | - |
| XU300785 | 155 | 900 | 670 | 860 | 22 | 36 | 710 | 86 | 79 | 784 | 786 | - | - |
| XU260823 | 140 | 933 | 713 | 893 | 22 | 36 | 753 | 79 | 72 | 822 | 824 | - | - |
| XU160897 | 67 | 976 | 818 | 944 | 18 | 36 | 850 | 50 | 43 | 896 | 898 | - | - |
Not sure which model fits your application? Contact us for selection support.
Looking for a reliable slewing bearing supplier?
Send your inquiry today to get:
Click “Chat Now" to contact us directly.
Q1: Is XU050077 suitable for heavy machinery?
Yes, it is designed for heavy-duty applications such as construction equipment, cranes, and industrial machinery, where high load capacity and low-speed operation are required.
Q2: Can I install this bearing easily?
Yes, the mounting holes make it easier to install and maintain, especially in heavy machinery and rotating systems.
Q3: Is this an original INA product?
No, this is not an original INA product.
It is a compatible replacement manufactured by GQZ Bearing with similar performance and dimensions.
Q4: Do you provide customization?
Yes, customization is available based on technical drawings or specific application requirements.
